ofArduino Class Reference
Inheritance diagram for ofArduino:
Inheritance graph
[legend]

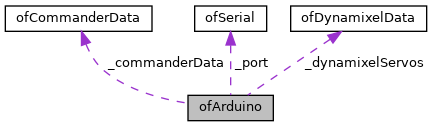

Collaboration diagram for ofArduino:
Collaboration graph
[legend]

Public Member Functions

virtual bool connect (std::string device, int baud=57600)

virtual void disconnect ()

virtual bool isArduinoReady ()

virtual void setUseDelay (bool bDelay)

virtual void update ()

virtual bool isInitialized ()

virtual void setDigitalHistoryLength (int length)

virtual void setAnalogHistoryLength (int length)

virtual void setStringHistoryLength (int length)

virtual void setSysExHistoryLength (int nSysEx)

virtual void sendDigitalPinMode (int pin, int mode)

virtual void sendAnalogPinReporting (int pin, int mode)

virtual void sendDigital (int pin, int value, bool force=false)

virtual void sendPwm (int pin, int value, bool force=false)

virtual void sendSysEx (int command, std::vector< unsigned char > data)

virtual void sendString (std::string str)

virtual void sendProtocolVersionRequest ()

virtual void sendFirmwareVersionRequest ()

virtual void sendReset ()

virtual void sendSysExBegin ()

virtual void sendSysExEnd ()

virtual void sendByte (unsigned char value)

virtual void sendValueAsTwo7bitBytes (int value)

virtual int getPwm (int pin)

virtual int getDigital (int pin)

virtual int getAnalog (int pin)

virtual std::vector< unsigned char > getSysEx ()

virtual std::string getString ()

virtual int getMajorProtocolVersion ()

virtual int getMinorProtocolVersion ()

virtual int getMajorFirmwareVersion ()

virtual int getMinorFirmwareVersion ()

virtual std::string getFirmwareName ()

virtual std::list< int > * getDigitalHistory (int pin)

virtual std::list< int > * getAnalogHistory (int pin)

virtual std::list< std::vector< unsigned char > > * getSysExHistory ()

virtual std::list< std::string > * getStringHistory ()

virtual int makeWord (unsigned char low, unsigned char high)

virtual unsigned char getLowByte (int val)

virtual unsigned char getHighByte (int val)

int getDigitalPinMode (int pin)

int getAnalogPinReporting (int pin)

int getValueFromTwo7bitBytes (unsigned char lsb, unsigned char msb)

unsigned int getByteFromDataIterator (std::vector< unsigned char >::iterator &it, std::vector< unsigned char >::iterator &end)

unsigned int GetWordFromDataIterator (std::vector< unsigned char >::iterator &it, std::vector< unsigned char >::iterator &end)

virtual void sendServo (int pin, int value, bool force=false)

virtual void sendServoAttach (int pin, int minPulse=544, int maxPulse=2400, int angle=180)

virtual void sendServoDetach (int pin)

virtual int getServo (int pin)

virtual void sendDynamixelServoAttach (unsigned char servo)

virtual void sendDynamixelServoDetach (unsigned char servo)

virtual void sendDynamixelSynchMoveStart ()

virtual void sendDynamixelSynchMoveAdd (unsigned char servo, int pos, int speed)

virtual void sendDynamixelSynchMoveExecute ()

virtual void sendDynamixelMove (unsigned char servo, int pos, int speed)

virtual void sendDynamixelStop (unsigned char servo)

virtual void sendDynamixelSetRegister (unsigned char servo, unsigned char reg, unsigned char length, unsigned int value)

virtual void sendDynamixelGetRegister (unsigned char servo, unsigned char reg, unsigned char length)

virtual void sendDynamixelConfigureServo (unsigned char servo, unsigned int cwlimit, unsigned int ccwlimit, unsigned int maxtorque, unsigned char delaytime, unsigned char cwcomplmargin, unsigned char ccwcomplmargin, unsigned char cwcomplslope, unsigned char ccwcomplslope)

virtual void sendDynamixelStopped (unsigned char servo)

virtual bool waitForSysExMessage (unsigned char cmd, unsigned int timeout_sec=1)


Public Attributes

ofDynamixelData _dynamixelServos [MAX_DYNAMIXEL_SERVOS]

ofCommanderData _commanderData

boost::signals2::signal< void(const int)> EDigitalPinChanged

boost::signals2::signal< void(const int)> EAnalogPinChanged

boost::signals2::signal< void(const std::vector< unsigned char >)> ESysExReceived

boost::signals2::signal< void(const int)> EProtocolVersionReceived

boost::signals2::signal< void(const int)> EFirmwareVersionReceived

boost::signals2::signal< void(const int)> EInitialized

boost::signals2::signal< void(const std::string)> EStringReceived

boost::signals2::signal< void(const int)> EDynamixelAllReceived

boost::signals2::signal< void(const int)> EDynamixelKeyReceived

boost::signals2::signal< void(const int, const int)> EDynamixelTransmitError

boost::signals2::signal< void(const unsigned char, const unsigned char, const unsigned int)> EDynamixelGetRegister

boost::signals2::signal< void(const int)> EDynamixelStopped

boost::signals2::signal< void(const int)> ECommanderDataReceived


Protected Member Functions

void initPins ()

virtual void sendDigitalPinReporting (int pin, int mode)

virtual void sendDigitalPortReporting (int port, int mode)

virtual void processData (unsigned char inputData)

virtual void processDigitalPort (int port, unsigned char value)

virtual void processSysExData (std::vector< unsigned char > data)

virtual void checkIncomingSysExMessage (unsigned char cmd)


Protected Attributes

bool _initialized

int _totalDigitalPins

ofSerial _port

int _portStatus

int _analogHistoryLength

int _digitalHistoryLength

int _stringHistoryLength

int _sysExHistoryLength

int _waitForData

int _executeMultiByteCommand

int _multiByteChannel

unsigned char _storedInputData [FIRMATA_MAX_DATA_BYTES]

std::vector< unsigned char > _sysExData

int _majorProtocolVersion

int _minorProtocolVersion

int _majorFirmwareVersion

int _minorFirmwareVersion

std::string _firmwareName

bool _firmwareReceived

int _firmwareVersionSum

std::list< std::vector< unsigned char > > _sysExHistory

std::list< std::string > _stringHistory

std::list< int > _analogHistory [ARD_TOTAL_ANALOG_PINS]

std::list< int > _digitalHistory [ARD_TOTAL_DIGITAL_PINS]

int _digitalPinMode [ARD_TOTAL_DIGITAL_PINS]

int _digitalPinValue [ARD_TOTAL_DIGITAL_PINS]

int _digitalPortValue [ARD_TOTAL_PORTS]

int _digitalPortReporting [ARD_TOTAL_PORTS]

int _digitalPinReporting [ARD_TOTAL_DIGITAL_PINS]

int _analogPinReporting [ARD_TOTAL_ANALOG_PINS]

bool bUseDelay

bool connected

int _servoValue [ARD_TOTAL_DIGITAL_PINS]

boost::timer _Timer

int _dynamixelMoveAdds

int _waitingForSysExMessage

bool _sysExMessageFound

The documentation for this class was generated from the following files:
