MKS_COMMANDS.hpp File Reference

Describes the commands which are available to send MKS SERVO57D/42D/35D/28D stepper motor driver modules. More...

#include <cstdint>

Include dependency graph for MKS_COMMANDS.hpp:

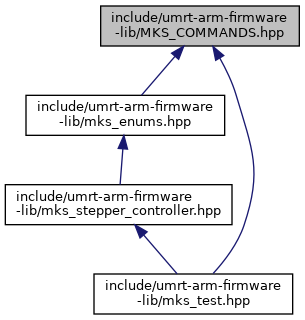

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum	MksCommands : uint8_t {   ENCODER_SPLIT = 0x30 , ENCODER_ADDITIVE = 0x31 , MOTOR_SPEED = 0x32 , CURRENT_POS = 0x33 ,   IO_STATUS = 0x34 , ENCODER_RAW = 0x35 , TARGET_ANGLE_ERROR = 0x39 , ENABLE_STATUS = 0x3A ,   GO_HOME_STATUS = 0x3B , RELEASE_SHAFT_LOCK = 0x3D , SHAFT_LOCK_STATUS = 0x3E , CALIBRATION = 0x80 ,   SET_WORK_MODE = 0x82 , SET_WORKING_CURRENT = 0x83 , SET_HOLDING_CURRENT = 0x83 , SET_MICROSTEP = 0x84 ,   SET_EN_MODE = 0x84 , SET_DIR_MODE = 0x86 , ENABLE_DISPLAY_SLEEP = 0x86 , ENABLE_ROTOR_LOCK = 0x88 ,   ENABLE_MICROSTEP_INTERPOLATION = 0x89 , CAN_BAUD_RATE = 0x8A , CAN_ID = 0x8B , RESPONSE_MODE = 0x8C ,   DISABLE_BUTTONS = 0x8F , SET_GROUP_ID = 0x8D , WRITE_IO = 0x36 , HOME_SETTINGS = 0x90 ,   GO_HOME = 0x91 , SET_ZERO = 0x92 , SET_BLIND_LIMIT = 0x94 , SET_LIMIT_PORT_REMAP = 0x9E ,   POWER_ON_HOMING_MODE = 0x9A , FACTORY_RESET = 0x3F , REBOOT_DRIVER = 0x41 , SET_MISC_SETTINGS = 0x9D ,   READ_PARAM = 0x00 , QUERY_STATUS = 0xF1 , ENABLE_MOTOR = 0xF3 , EMERGENCY_STOP = 0xF7 ,   SET_SPEED = 0xF6 , SET_POWER_ON_SPEED = 0xFF , SEND_STEP = 0xFD , SEEK_POS_BY_STEPS = 0xFE ,   SEND_ANGLE = 0xF4 , SEEK_POS_BY_ANGLE = 0xF5 }
	CAN commands for the MKS SERVO57D/42D/35D/28D stepper motor driver modules. More...

Detailed Description

Describes the commands which are available to send MKS SERVO57D/42D/35D/28D stepper motor driver modules.

Enumeration Type Documentation

MksCommands

enum MksCommands : uint8_t

CAN commands for the MKS SERVO57D/42D/35D/28D stepper motor driver modules.

Each message must have its checksum appended. Uses big-endian encoding.

The checksum function is a simple 8-bit sum-of-bytes. A sample Python implementation is:

cs = 0
for x in message:
    cs = (cs + x) & 0xFF
return cs

Nominal Operating Conditions

When used, "nominal conditions" refers to a stepper driver configured to be in 16-microstepping mode along with a 200 step/rev motor. These are the conditions the manual authors assumed, and thus many hard-coded computations are based on it. Particularly, the manual documents the motor speed units to be "RPM". This is only true for these conditions; a speed of "1 RPM" actually corresponds to 3200 steps per minute. If a 200 step/rev motor is being used in full-step mode, a speed command of "1 RPM" will instead move the motor at \(v = 1 * \left(\frac{3200\ steps}{min}\right) \left(\frac{1\ full-step}{step}\right) \left(\frac{1\ rev}{200\ full-steps}\right) = 16\ RPM\)

Enumerator
ENCODER_SPLIT	Encoder value, split into number of turns and angle. The angle is a 14-bit unsigned integer (0-0x3FFF), and follows the formula:   angle = 360 * angle_value / 2^14 For example, a quarter turn CW would be (0, 0x1000), and a quarter turn CCW would be (-1, 0x3000). Note that the manual refers to number of turns as the "carry". Returns num_turns [int32] the number of turns from the zero point angle_value [uint16] the angle, in 1/2^14 of a rotation
ENCODER_ADDITIVE	Encoder value, with the number of turns and angle combined into a single integer. The angle is a 48-bit signed integer (0-0x3FFF for one CW rotation), and follows the formula:   angle = 360 * combined_angle_value / 2^14 For example, a quarter turn CW would be 0x1000, and a quarter turn CCW would be -(0x1000)=0xFFFF_FFFF_F000 Returns combined_angle_value [int48] the angular offset from the sero point, in 1/2^14 of a rotation
MOTOR_SPEED	Motor speed, as determined by the encoder. Represented as a signed integer, where positive denotes CCW and negative denotes CW. Returns speed [int16] the current speed in RPM TODO: Units probably wrong TODO: I am assuming it is determined by the encoder because I am seeing odd responses, and I don't have an encoder installed
CURRENT_POS	The current position of the motor, in steps As an alternative to the encoder value, this command allows position tracking by step counting. Returns steps [int32] the angular offset from the sero point, in steps
IO_STATUS	Status of the IO ports. Returns a byte, with each bit representing: Bit 7 6 5 4 3 2 1 0 Meaning Manufacturer Reserved OUT_2 status OUT_1 status IN_1 status IN_2 status Note that if LIMIT_PORT_REMAP is enabled, IN_1 maps to En, and IN_2 maps to Dir Returns flags [uint8] the port statuses, formatted as above
ENCODER_RAW	Encoder value, in the "raw" (?) format. The manual entry for this is identical to ENCODER_ADDITIVE. Returns combined_angle_value [int48]
TARGET_ANGLE_ERROR	Difference between the target angle (mod 1 turn) and the current angle. The error is a signed integer, where the range 0-0xC800 maps to 0-360°. Returns error_value [int32] the error, calculated as above TODO: Confirm it is mod 1
ENABLE_STATUS	Status of the En pin. Returns enabled [uint8]
GO_HOME_STATUS	Whether the motor successfully went back to the zero point once powered on. There are three legal return values: 0x00: The motor is currently moving towards the zero point 0x01: The motor successfully reached the zero point when started 0x02: The motor failed to reach the zero point when started Returns status [uint8] the status code
RELEASE_SHAFT_LOCK	Commands the driver to release a motor from the locked-rotor protection state. Returns succeeded [uint8] 1 if successfully set, 0 otherwise
SHAFT_LOCK_STATUS	Whether the motor is currently in the locked-rotor protection state. Note that the manual says "protected" vs. "no protected", should be confirmed before use. Returns locked [uint8] 1 if locked, 0 otherwise
CALIBRATION	Calibration status. The motor must be unloaded for calibration. There are three legal return values: 0x00: The motor is currently calibrating 0x01: Motor calibration succeeded 0x02: Motor calibration failed Accessible through the driver screen as "Cal". Parameters begin [uint8] set to 0x00 to begin calibration Returns status [uint8] the status code
SET_WORK_MODE	Sets the work mode of the motor driver. There are 6 possible options: (Default: CR_vFOC) 0x00: Open loop, pulse interface (CR_OPEN) 0x01: Closed loop, pulse interface (CR_CLOSE) 0x02: Field oriented control, pulse interface (CR_vFOC) 0x03: Open loop, serial interface (SR_OPEN) 0x04: Closed loop, serial interface (SR_CLOSE) 0x05: Field oriented control, serial interface (SR_vFOC) Accessible through the driver screen as "Mode" Parameters mode [uint8] the requested work mode Returns succeeded [uint8] 1 if successfully set, 0 otherwise
SET_WORKING_CURRENT	Sets the maximum current the driver is allowed to push through the motor (working current). Should not exceed 3000mA for SERVO42D/35D/28D models, and should not exceed 5200mA for the SERVO57D model. Accessible through the driver screen as "Ma". Parameters current [uint16] working current, in milliamps Returns succeeded [uint8] 1 if successfully set, 0 otherwise
SET_HOLDING_CURRENT	Sets the percentage of the working current to use for as the maximum holding current. I am not entirely clear on what this means for a stepper motor, but that is what the manual says. This is set as a value from 0-8: 0x00: 10% 0x01: 20% 0x02: 30% ... 0x08: 90% Note that this is not applicable to vFOC modes. Accessible through the driver screen as "HoldMa". Parameters percentage_mode [uint8] holding current percentage, according to the scale above Returns succeeded [uint8] 1 if successfully set, 0 otherwise
SET_MICROSTEP	Sets the microstepping division. Can be set to any division, not just powers of 2. Accessible through the driver screen as "MStep", though only 1, 2, 4, 8, 16, 32, 64, 128, and 256 are available. Parameters mode [uint8] microsteps per fullstep, with 0x00 meaning 256-microstepping Returns succeeded [uint8] 1 if successfully set, 0 otherwise
SET_EN_MODE	Sets the En pin mode. There are three possible modes: 0x00: active low (L on driver screen) 0x01: active high (H on driver screen) 0x02: active always (Hold on driver screen) Accessible through the driver screen as "En". Parameters mode [uint8] pin mode Returns succeeded [uint8] 1 if successfully set, 0 otherwise
SET_DIR_MODE	Sets the Dir pin mode. There are three possible modes: (These should be confirmed before being used, manual is somewhat ambiguous) 0x00: CW when low 0x01: CCW when low Only applicable when using the pulse interface. Accessible through the driver screen as "Dir". Parameters mode [uint8] pin mode Returns succeeded [uint8] 1 if successfully set, 0 otherwise
ENABLE_DISPLAY_SLEEP	Enables automatic shutoff of the driver screen after ~15 seconds. The screen can be woken up by pressing any button. Accessible through the driver screen as "AutoSDD". Parameters enable [uint8] 1 to enable, 0 to disable Returns succeeded [uint8] 1 if successfully set, 0 otherwise
ENABLE_ROTOR_LOCK	Lock/unlock the rotor. Note that the motor can be unlocked by sending RELEASE_SHAFT_LOCK, pressing "Enter" on the driver screen, or pulsing the En pin if in pulse interface mode. Accessible through the driver screen as "Protect". Parameters lock [uint8] 1 to enable, 0 to disable Returns succeeded [uint8] 1 if successfully set, 0 otherwise TODO: Is this locking, or setting the driver to somehow automatically lock?
ENABLE_MICROSTEP_INTERPOLATION	Enable microstep "interpolation", which internally uses 256-microstepping for smoother movement. Works by internally setting the motor microstep subdivisions to 256 instead of the division x set by SET_MICROSTEP, and converting each x-microstep into the equivalent number of 256-microsteps each time the motor is stepped. For example, if this is used with quarter-stepping, the motor will actually move 64 256-microsteps each time. This allegedly reduces the vibration and noise when the motor moves at low speed. Accessible through the driver screen as "Mplyer". Parameters enable [uint8] 1 to enable, 0 to disable Returns succeeded [uint8] 1 if successfully set, 0 otherwise
CAN_BAUD_RATE	Sets the CAN bus baud rate. There are four possible options: 0x00: 125 K 0x01: 250 K 0x02: 500 K 0x03: 1000 K Accessible through the driver screen as "CanRate". Parameters baud_rate [uint8] the selected CAN baud rate Returns succeeded [uint8] 1 if successfully set, 0 otherwise
CAN_ID	Sets the CAN bus ID for this driver. Eligible IDs are 0x001-0x7FF. Must not be set to 0 as that is the broadcast address. Accessible through the driver screen as "CanID". Parameters new_id [uint16] the requested CAN bus ID Returns succeeded [uint8] 1 if successfully set, 0 otherwise
RESPONSE_MODE	Change response mode. There are three possible response modes: Mode Description Disabled The driver will not send message responses TODO: Does this apply to read requests too? Passive The driver will immediately respond to commands, and not send any follow-ups Active The driver will immediately respond to commands, and send follow-up information as applicable Some commands are capable of sending multiple responses. For example, SEND_STEP could send one response with 0x01 indicating the motor has begun moving, followed by another response with 0x02 indicating the motor has reached the target. Alternatively, it may only respond with 0x00 indicating that the command has been rejected. In this case, in active mode all of these responses could be sent, whereas in passive mode only the first response would be. Parameters enable_responses [uint8] set to 0 to disable responses, or 1 to enable allow_active [uint8] provided enable_responses is 1, set to 0 to enter passive mode or 1 for active
DISABLE_BUTTONS	Disables the buttons on the driver. Parameters disable [uint8] 1 to disable keys, 0 to enable Returns succeeded [uint8] 1 if successfully set, 0 otherwise
SET_GROUP_ID	Sets the group ID of this driver. Commands sent to the group ID will apply to every driver with that group ID. The group ID acts as an alternative CAN bus ID. However, no drivers will send responses to messages sent to their group ID. For example, could be used to link the left-side front and rear motors of differential drive car. Must not be set to 0 as that is the broadcast address. Eligible IDs are 0x001-0x7FF. Parameters group_id [uint16] the requested group ID Returns succeeded [uint8] 1 if successfully set, 0 otherwise TODO: Make sure I understand the manual's example
WRITE_IO	Write values to the IO ports. Input is a byte, with each bit representing: Bit 7 6 5 4 3 2 1 0 Meaning OUT_2 Mode OUT_1 mode OUT_2 value OUT_1 value 0 0 There are 3 possible modes for OUT_2 and OUT_1: 0b00: Do not write to the port 0b01: Write passed OUT_1/OUT_2 value to the port 0b02: Do not change the port's value Parameters settings [uint8] flags byte following the above format Returns succeeded [uint8] 1 if successfully set, 0 otherwise TODO: What is the difference between 0b00 and 0b02?
HOME_SETTINGS	Sets parameters for the return-to-home sequence. Allows the following parameters to be changed: Home trigger: The logic level of the end stop input, which is used to determine when the motor has reached home Home direction: Whether home is CW or CCW from the motor Home speed: How fast the motor should move during the homing sequence End stop lock: Whether to automatically override the rotor shaft lock generated when the motor reaches the end stop Mode: Whether to use the end stop input to determine when home is reached, or the technique described by SET_BLIND_LIMIT The manual states that it is necessary to issue a homing command after the settings have been changed. Parameters home_trigger [uint8] 1 for active high or 0 for active low home_dir [uint8] the direction of home, 1 for CCW or 0 for CW home_speed [uint16] speed to move towards home at, in units of 160/3 steps/s, see Constants.MAX_SPEED for restrictions lock_at_end [uint8] 1 to automatically clear the rotor shaft lock after homing, 0 to not mode [uint8] 1 to use the blind-limit-sensing or 0 to use the end stop input Returns succeeded [uint8] 1 if successfully set, 0 otherwise TODO: Confirm the logic levels are not backwards
GO_HOME	Start the homing sequence. Note that if the limit switch is already triggered, the motor will move in the opposite direction of home until the limit switch releases, at which point to will restart the homing sequence. There are three legal return values: 0x00: The motor failed to return home 0x01: The motor is starting the homing sequence 0x02: The motor has successfully homed Returns status [uint8] the status code
SET_ZERO	Set the zero position. Sets the motor's current position to 0. Returns succeeded [uint8] 1 if successfully set, 0 otherwise
SET_BLIND_LIMIT	Blindly finds the axis limit by turning until the motor hits an obstacle. This is an alternative to a physical limit switch for the homing procedure. The maximum distance to rotate is specified in increments of 1/2^14 of a rotation, the same as described in ENCODER_SPLIT. Therefore, to move at most 360°, a distance of 0x4000 should be used An alternate maximum current is set here to use when homing so the motor stalls before inflicting damage. It would be a good idea to set the current limit at the minimum current required to move the motor, since it is going to hit something with whatever torque that current corresponds to. Parameters max_distance [uint32] the maximum distance to rotate towards home, in 1/2^14 of a rotation max_current [uint16] the maximum current to use when homing, in milliamps Returns succeeded [uint8] 1 if successfully set, 0 otherwise
SET_LIMIT_PORT_REMAP	Remap ports for an additional limit or to facilitate wiring. When used with the SERVO42D/35D/28D models, this converts the DIR port becomes the IN_2 port which is used as another end stop. Without this, these models can only have one end stop. Note that since there is no longer a DIR port, the pulse interface cannot be used. For the SERVO52D model, this switches the EN port with the IN_1 port, and the DIR port with the IN_2 port. This may be helpful to facilitate wiring. Parameters enable_remap [uint8] 1 to enable, 0 to disable Returns succeeded [uint8] 1 if successfully set, 0 otherwise
POWER_ON_HOMING_MODE	Set how the motor homes upon startup. Allows the following parameters to be changed: Home mode: Whether to not home, move towards home in the specified direction, or move towards home in the direction which minimises the distance (the minimum angle) Enable: The manual lists options as clean zero, set zero, or do not modify zero; I do not understand what these mean Speed: A relative speed setting ranging from 0x00-0x04, where 0x04 is fastest and 0x00 is slowest Direction: Whether to move CW or CCW when the directional homing mode is used Home mode is accessible through the driver screen as "0_Mode", Enable as "Set 0", Speed as "0_Speed", and Direction as "0_Dir". Note that the motor will not move beyond 359°. Parameters home_mode [uint8] 0 to disable, 1 for directional, or 2 for minimum angle enable [uint8] 0 for clean zero, 1 for set zero, or 2 to do not modify zero speed [uint8] a value from 0x00-0x04, where 0x04 is fastest and 0x00 is slowest dir [uint8] direction to seek if applicable, 0 for CW or 1 for CCW Returns succeeded [uint8] 1 if successfully set, 0 otherwise
FACTORY_RESET	Restores the default settings. After restoring factory settings, the driver will reboot and the motor will need to be calibrated. The "Next" button on the driver screen may need to be pressed after sending this command. TODO: Confirm. Returns succeeded [uint8] 1 if successfully restored, 0 otherwise
REBOOT_DRIVER	Reboots the motor driver. Returns succeeded [uint8] 1 if successfully set, 0 otherwise
SET_MISC_SETTINGS	Modifies motor protection settings and allows delayed homing when using the pulse interface. This command allows two distinct functions to be enabled. The first affects the driver's zeroing behaviour. POWER_ON_HOMING_MODE can be used to automatically home the motor when power is restored, however in some applications this may not be safe. When using the pulse interface, a GO_HOME command cannot be sent to trigger the homing sequence. Through the en_trigger flag, the driver can be programmed to instead begin homing when a 200ms pulse is received on the En pin. Note that POWER_ON_HOMING_MODE must be programmed for this to occur as the driver needs to know which direction, speed, etc. to move when the sequence is triggered. The second affects the driver's motor protection system. If the pos_error_protection flag is enabled, the driver will enter the locked rotor shaft state if the position error is greater than a certain threshold within a time window. I am not entirely clear on what this means, but the manual states that: "within x time, if the motor position error is greater than y, the protection is started". My interpretation is that "errors" refers to missed steps, and the goal is to enter the protection state when a certain number of steps are missed within a certain timeframe. For example, an application may find it beneficial to lock the motor if 5 steps are missed in 100ms. The manual states that "when Errors = 28000, the motor is misaligned by 360°", but I do not understand what this means or if it contradicts the above. If the position protection system is triggered, the driver screen displays "Wrong2". Note that "Wrong" is displayed on the screen when the stall protection system triggered. The flags are encoded into a byte according to: Bit 7 6 5 4 3 2 1 0 Meaning Set to 0 en_trigger poss_error_protection Parameters settings [uint8] flags byte following the above format time [uint16] size of the position error protection time window, in ~15ms increments errors [uint16] error threshold for position error protection?
READ_PARAM	Reads the current setting for a parameter. Parameters are returned in the same format as they are set. If a parameter does not support reading, the payload 0xFF_FF is returned. From my interpretation of the manual, I suspect the only parameters which support reading are: SET_WORK_MODE SET_WORKING_CURRENT SET_HOLDING_CURRENT SET_MICROSTEP SET_EN_MODE SET_DIR_MODE ENABLE_DISPLAY_SLEEP ENABLE_ROTOR_LOCK ENABLE_MICROSTEP_INTERPOLATION CAN_BAUD_RATE CAN_ID RESPONSE_MODE DISABLE_BUTTONS SET_GROUP_ID For example, when used with SET_WORK_MODE the response would be a uint8 that could be compared to the table described in SET_WORK_MODE to determine which mode the driver has been put in. Parameters parameter_code [uint8] the code for the requested parameter Returns parameter_value [unknown length] the requested parameter's value, or 0xFFFF if unavailable
QUERY_STATUS	Get current motor status Retrieves a status code describing the current state of the motor: 0x00: Query failed 0x01: Motor stopped 0x02: Motor accelerating 0x03: Motor slowing down 0x04: Motor moving at target speed 0x05: Motor homing 0x06: Motor calibrating Returns status [uint8] status code
ENABLE_MOTOR	Enable the motor Not entirely sure when this is needed. Parameters enable [uint8] 1 to enable, 0 to disable Returns succeeded [uint8] 1 if successfully set, 0 otherwise
EMERGENCY_STOP	Immediately stop the motor. Does not decelerate, attempts to immediately stops. According to the manual, if a motor is moving at greater than 1000 RPM it is not advisable to immediately stop it. Returns succeeded [uint8] 1 if stop successfully issued, 0 otherwise
SET_SPEED	Run the motor at a target speed. Sets the motor to spin at a specific speed with a fixed acceleration. The speed properties are encoded into a 16-bit integer according to: Bit 15-8 7 6-4 3 2 1 0 Meaning Speed_low Dir Reserved Speed_high The speed value is a 12-bit unsigned integer, split so that the low nibble of the word contains the high nibble of the speed, and the high byte of the word contains the low byte of the speed. It can be reconstructed according to:   Speed = Speed_low | (Speed_high << 8) For why the speed is encoded this way, note that this can be alternatively expressed as: Byte 1 2 Bits 7 6-4 3-0 7-0 Meaning Dir Reserved Speed For example, 0x81_40 indicates moving CW at v = 0x40 | (0x01 << 8) = 320 * (160/3 steps/s) = 51 200 steps/s [320 nominal RPM]. For another, 0x0A_BC indicates moving CCW at v = 0xBC | (0x0A << 8) = 2748 * (160/3 steps/s) = 146 560 steps/s [2748 nominal RPM]. Note that the motor can be stopped by sending a speed of 0. If an acceleration of 0 is used, the motor will stop, or more generally reach the target speed, immediately. Dir: 1 indicates CW, and 0 CCW Speed: motor speed in units of 160/3 steps/s, see Constants.MAX_SPEED for restrictions. Parameters packed_properties [uint16] speed properties encoded as described above acceleration [uint8] motor acceleration, see Constants.MAX_ACCEL for description Returns succeeded [uint8] 1 if command successfully issued, 0 otherwise
SET_POWER_ON_SPEED	Set the driver to engage at the current speed upon startup. Saves the current speed and direction into memory. When the driver starts up, it will begin spinning at this speed. Parameters command [uint8] 0xC8 to save the current speed, 0xCA to reset to 0 Returns succeeded [uint8] 1 if successfully set, 0 otherwise
SEND_STEP	Run the motor a specific number of steps. The manual refers to this as "Position mode1: relative motion by pulses". Commands the motor to move a certain number of steps at a target speed with a fixed acceleration. See SEND_ANGLE for a variation of this command which moves by an angle instead of a number of steps. The speed properties are encoded into a 16-bit integer according to: Bit 15-8 7 6-4 3 2 1 0 Meaning Speed_low Dir Reserved Speed_high The speed value is a 12-bit unsigned integer, split so that the low nibble of the word contains the high nibble of the speed, and the high byte of the word contains the low byte of the speed. It can be reconstructed according to:   Speed = Speed_low | (Speed_high << 8) Dir: 1 indicates CW, and 0 CCW Speed: target motor speed in units of 160/3 steps/s, see Constants.MAX_SPEED for restrictions For additional information about encoding, see SET_SPEED. The motor can be stopped by sending another command with zero packed_properties and steps. Note that this is different then simply sending another SEND_STEP command, as usually the commands are queued so that the first command would finish and then the second would be executed. The stop variation behaves differently, in that it is not queued and the motor immediately starts slowing. If an acceleration of 0 is used, the motor will stop, or more generally reach the target speed, immediately. Note as well that this may cause the motor to overshoot the original target if the acceleration is too slow. There are four legal return values: 0x00: Movement failed 0x01: The motor is moving 0x02: The motor has reached the target position 0x03: An end limit has been reached Parameters packed_properties [uint16] speed properties encoded as described above acceleration [uint8] motor acceleration, see Constants.MAX_ACCEL for description steps [uint24] number of steps to move Returns status [uint8] the status code described above
SEEK_POS_BY_STEPS	Run the motor to a specific position in steps. The manual refers to this as "Position mode2: absolute motion by pulses". Commands the motor to a particular position at a target speed with a fixed acceleration. As with ENCODER_ADDITIVE, a positive position indicates CW of zero, and negative CCW of zero. See SEEK_POS_BY_ANGLE for a variation of this command which takes the position as an angle instead of a number of steps. The motor can be stopped by sending another command with zero speed and steps. Note that this is different from simply sending another SEEK_POS_BY_STEPS command, as usually the commands are queued so that the first command would finish and then the second would be executed. The stop variation behaves differently, in that it is not queued and the motor immediately starts slowing. If an acceleration of 0 is used, the motor will stop, or more generally reach the target speed, immediately. Note as well that this may cause the motor to overshoot the original target if the acceleration is too slow. There are four legal return values: 0x00: Movement failed 0x01: The motor is moving 0x02: The motor has reached the target position 0x03: An end limit has been reached Parameters speed [uint16] target motor speed in units of 160/3 steps/s, see Constants.MAX_SPEED for restrictions acceleration [uint8] motor acceleration, see Constants.MAX_ACCEL for description position [int24] position to move to, in steps from the zero point Returns status [uint8] the status code described above
SEND_ANGLE	Run the motor CW or CCW by a specific angle. Commands the motor to a particular position at a target speed with a fixed acceleration. The manual refers to this as "Position mode3: relative motion by axis [angle]". Angles are represented in the same fashion as ENCODER_ADDITIVE, where a positive position indicates CW of zero, and negative CCW of zero. For example, if the motor is currently at 0x4000 (1 turn CW of zero), and 0xFFFF_FFFF_F000 (90° CCW) is sent, the motor will move to 0x3000 (270° CW of zero). See SEND_STEP for a variation of this command which moves by a number of steps instead of an angle. The motor can be stopped by sending another command with zero speed and angle. Note that this is different from simply sending another SEND_ANGLE command, as usually the commands are queued so that the first command would finish and then the second would be executed. The stop variation behaves differently, in that it is not queued and the motor immediately starts slowing. If an acceleration of 0 is used, the motor will stop, or more generally reach the target speed, immediately. Note as well that this may cause the motor to overshoot the original target if the acceleration is too slow. There are four legal return values: 0x00: Movement failed 0x01: The motor is moving 0x02: The motor has reached the target position 0x03: An end limit has been reached Parameters speed [uint16] target motor speed in units of 160/3 steps/s, see Constants.MAX_SPEED for restrictions acceleration [uint8] motor acceleration, see Constants.MAX_ACCEL for description angle [int24] angle to move by, in 1/2^14 of a rotation Returns status [uint8] the status code described above
SEEK_POS_BY_ANGLE	Run the motor to a specific angular position. The manual refers to this as "Position mode4: absolute motion by axis [angle]". Commands the motor to a particular position at a target speed with a fixed acceleration. Angles are represented in the same fashion as ENCODER_ADDITIVE, where a positive position indicates CW of zero, and negative CCW of zero. For example, an angular position of 0x4000 corresponds to 360° CW, and an angular position of 0xFFFF_FFFF_B000 corresponds to 450° CCW. See SEEK_POS_BY_STEPS for a variation of this command which takes the position as number of steps instead of an angle. Note this command behaves uniquely in that if another SEEK_POS_BY_ANGLE command is sent while this is executing, the first command will be dropped and the motor will seek the second position instead. For other commands, the requests are queued so that the first command finishes before the second is executed. The motor can be stopped by sending another command with zero speed and angle. If an acceleration of 0 is used, the motor will stop, or more generally reach the target speed, immediately. Note that this may cause the motor to overshoot the original target if the acceleration is too slow. There are four legal return values: 0x00: Movement failed 0x01: The motor is moving 0x02: The motor has reached the target position 0x03: An end limit has been reached Parameters speed [uint16] target motor speed in units of 160/3 steps/s, see Constants.MAX_SPEED for restrictions acceleration [uint8] motor acceleration, see Constants.MAX_ACCEL for description steps [int24] position to move to, in steps from the zero point Returns status [uint8] the status code described above
